Trelino Evo High-Efficiency 12v Fan Kit for Composting Toilet Systems

$35800
Trelino  |  SKU: TRE-FAN-KT

fast box Orders processed and shipped out in 2-3 weeks warranty icon Covered by the Trelino product warranty returns icon 100-day free returns quote request icon Request a free  quotation

Trelino Evo High-Efficiency 12v Fan Kit for Composting Toilet Systems is backordered and will ship as soon as it is back in stock.

Description

Powerful Ventilation Solution ABS Fan Accessories Set with Activated Carbon Filter and Quiet Operation for Trelino® Composting Toilet

Enhance the efficiency of your Trelino EVO Waterless Composting Toilet with the Trelino® Fan Accessories Set.

This comprehensive set is designed to provide optimal ventilation, ensuring a comfortable and odour-free environment, making it the perfect addition to your sustainable living setup.

Key Features

  • Powerful Ventilation: The 12V axial fan with vapo bearing operates at 5800 rpm, delivering an impressive air output of 23.4 m³/h to keep your composting toilet well-ventilated.
  • Low Noise Level: With a noise level of just 30.7 dB, the fan ensures quiet operation, maintaining a peaceful environment.
  • Efficient Performance: Consuming only 0.98 W of power and 0.081 A of current, this fan is both energy-efficient and effective.
  • Comprehensive Set: Includes all necessary components for easy installation and enhanced functionality.

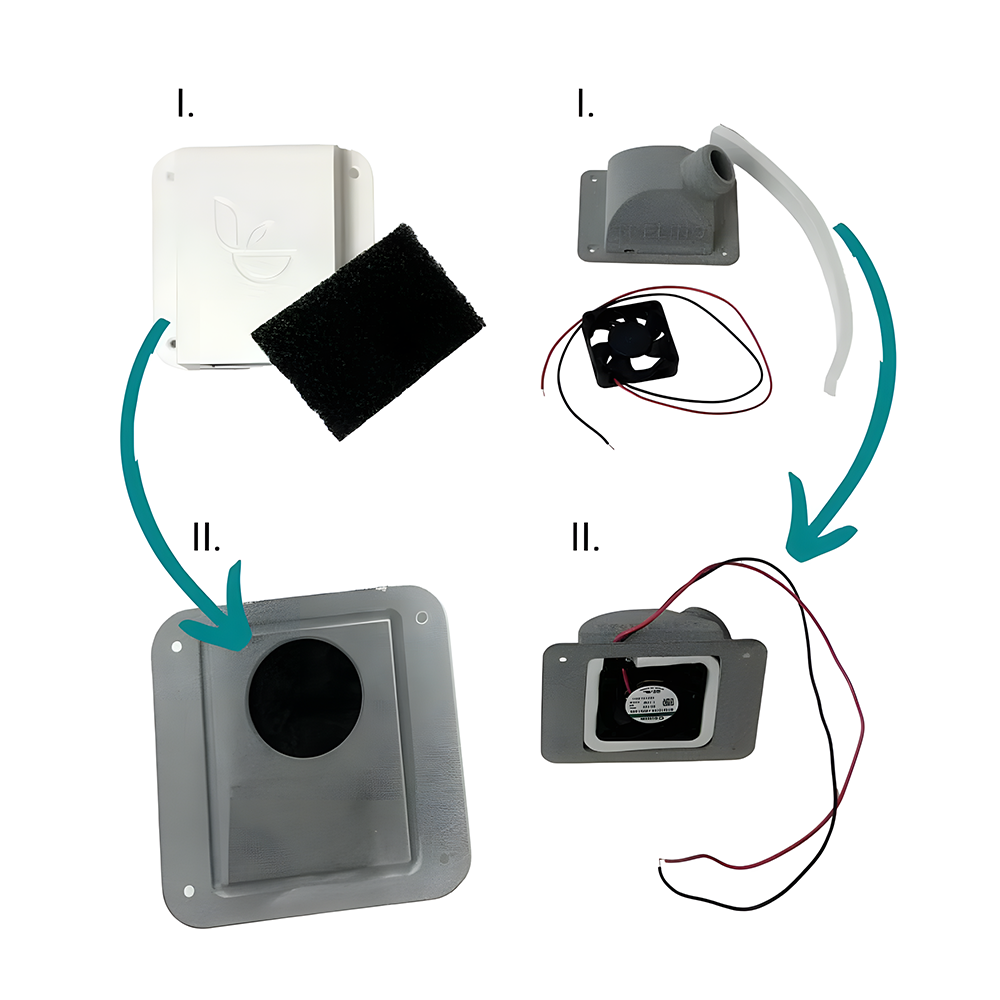

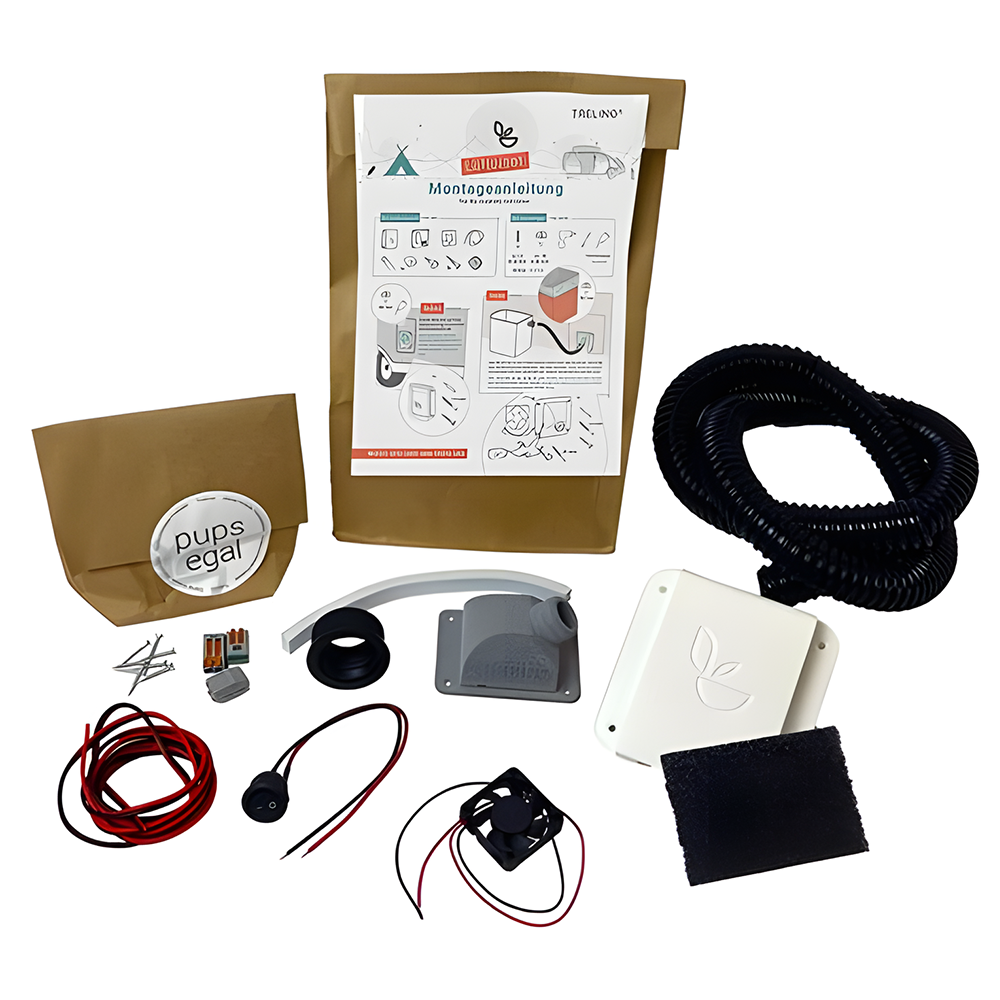

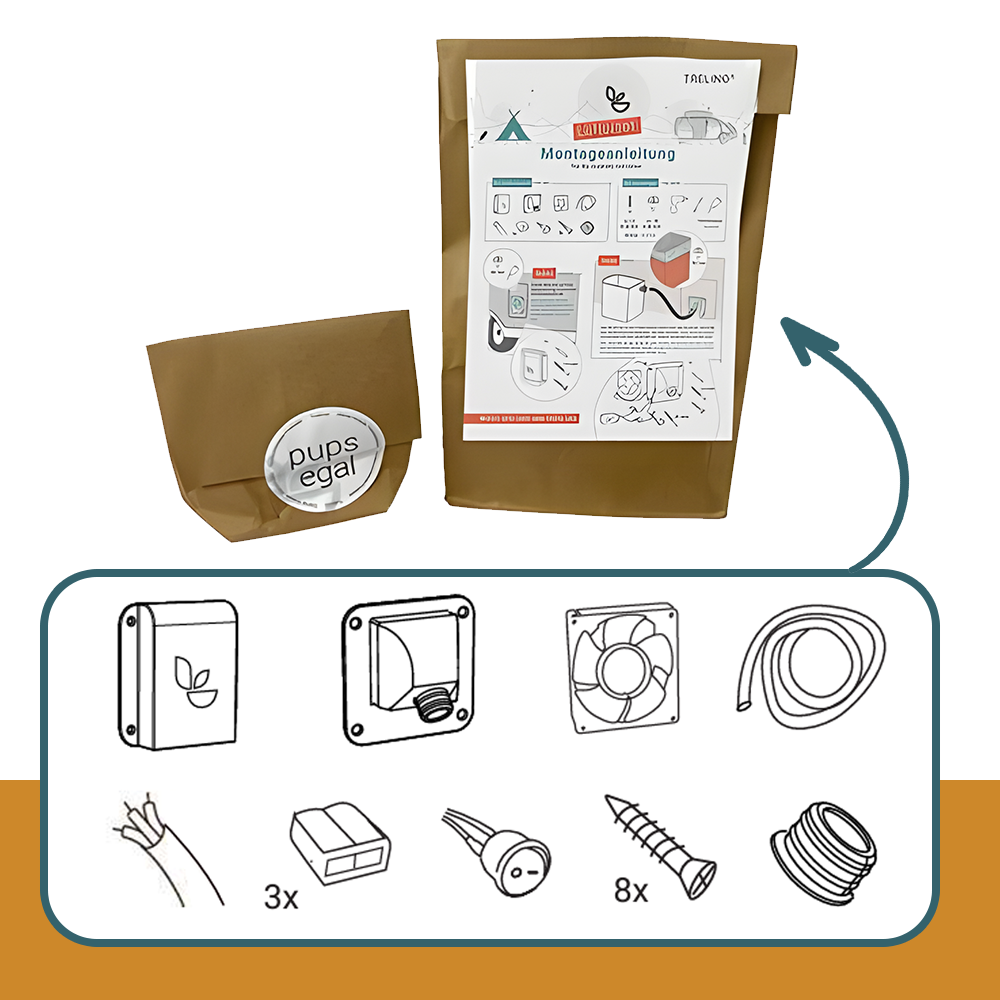

What's in the Box:

  • 12V Fan: High-performance fan for efficient ventilation.
  • Fan Hose: Flexible hose (Di 25 mm / Da 32 mm) for optimal airflow.
  • Fan Housing: Secure housing to protect the fan and ensure proper installation.
  • External Cover with Activated Carbon Filter: Helps to further minimize odours.
  • Switch: Convenient switch for easy operation.
  • Sleeve for Hose Connection (40x32): Ensures a secure fit for the fan hose.
  • Mounting Set: Complete set of mounting hardware for easy installation.

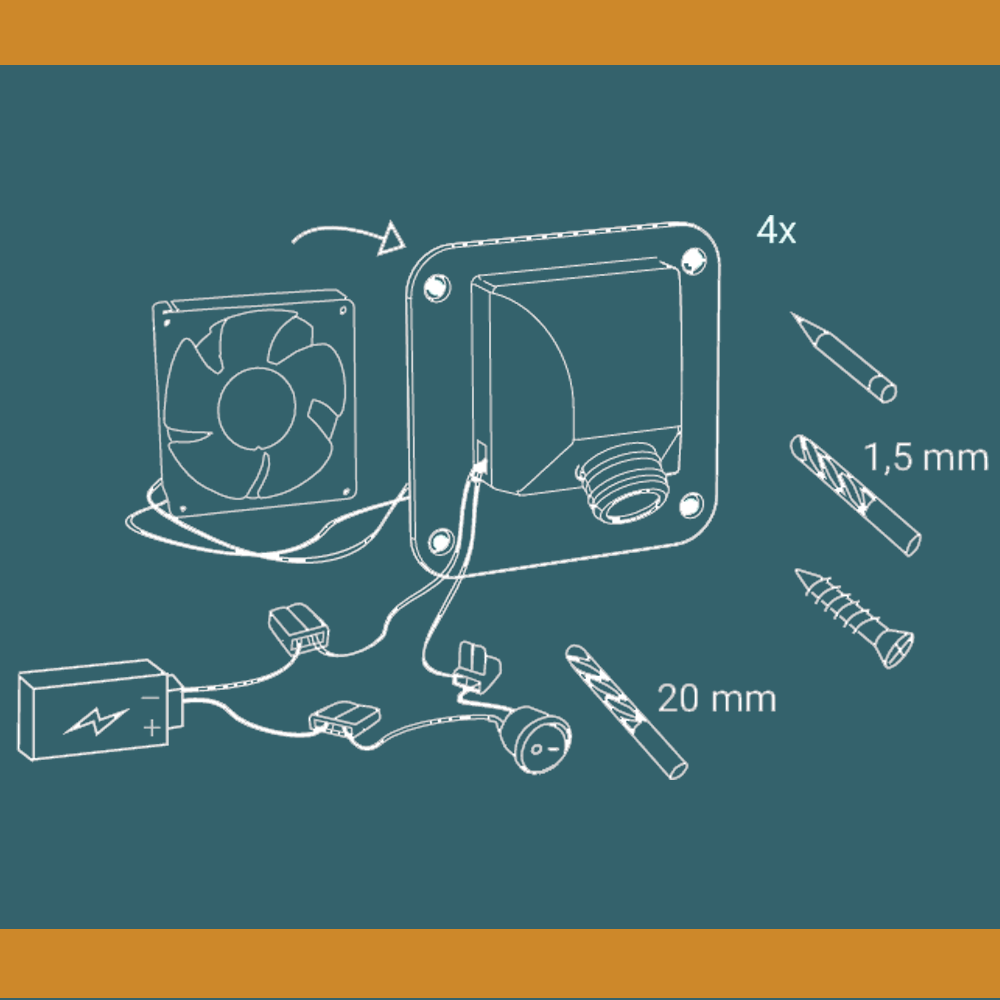

Installation Tips

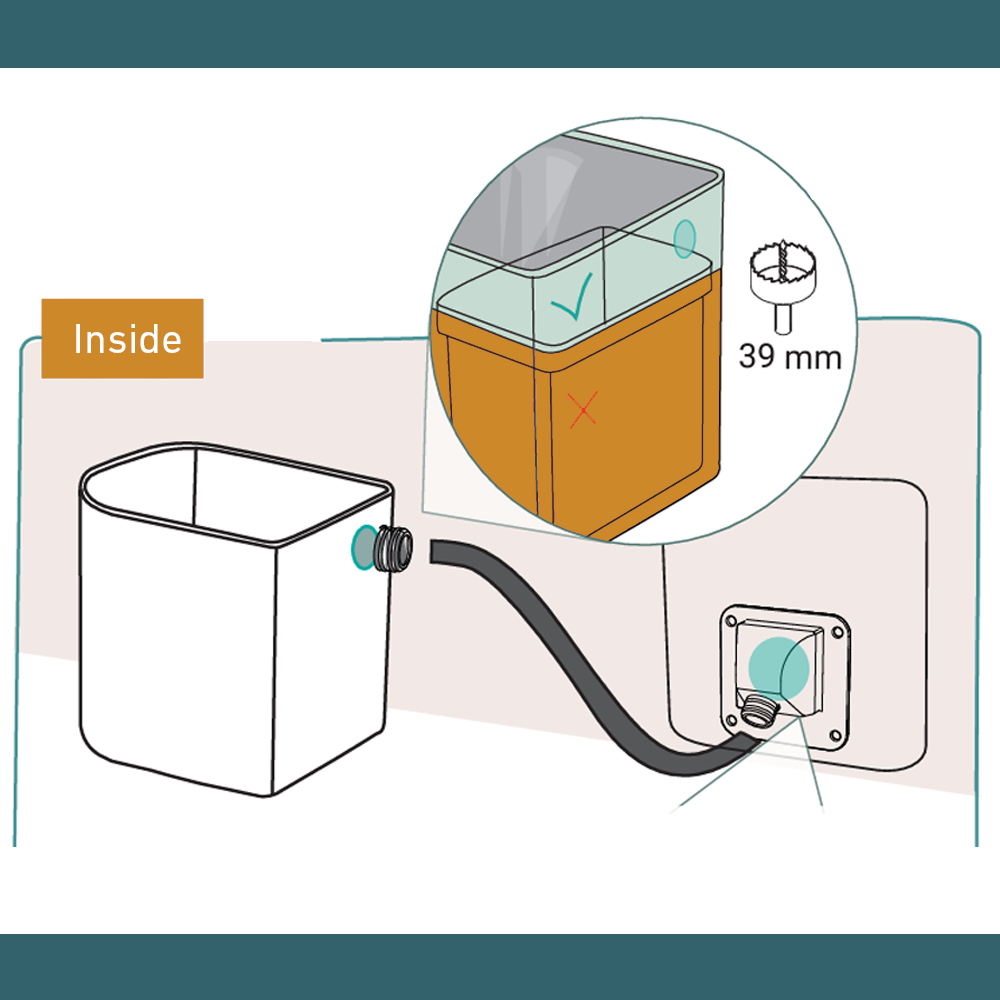

For the best results, drill a 39 mm hole in the Trelino wall using a step drill to avoid unsightly edges. For Trelino® wood compost toilets, a circular hole saw or Forstner bit (38-40 mm) is recommended.

Enhance Your Trelino EVO Experience

The Trelino® Fan Accessories Set is an essential upgrade for your Trelino EVO Waterless Composting Toilet, offering superior ventilation and odour control. Ideal for campers, caravans, tiny houses, and boats, this set ensures a comfortable and fresh environment wherever you go.

Upgrade your Trelino EVO today and enjoy the benefits of enhanced airflow and odour management.



Fan Assembly Manual

Specifications

  • Technical Specifications
    12V Axial Fan:
    Power: 0.98 W
    Current: 0.081 A
    Speed: 5800 rpm
    Air Output: 23.4 m³/h
    Noise Level: 30.7 dB
  • Weight
    0.4kg
  • Dimensions
    Pack Size: 299mm x 253mm x 127mm

    Fan Hose Dimensions:
    Inner Diameter: 25mm
    Outer Diameter: 32mm
  • Power
    0.98 W
  • Warranty
    1 Year Warranty

Delivery

All orders are shipped from Australia with fast shipping from trusted couriers & order tracking notifications sent via SMS and email.

Complementary shipping insurance included at no extra cost.

Orders processed and shipped out in 2-3 weeks

Delivered via courier: VIC, ACT & NSW 2-4 days, QLD & SA, 3-5 days, WA & NT 6-8 days

Pickup unavailable for this product

Note: Shipping charges apply per shipment and may vary depending on the warehouse location or supplier.

View our shipping policy for full delivery details.

Our customer support team is here to help with any delivery concerns.

Finance Options

Purchases up to $2,000

Pay in 4 with PayPal

PayPal Pay in 4 image




Your Details Are Safe

  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

We ensure secure processing of your payment information and do not retain or have any access to your credit card details.

Lifetime Support

Eco Off Grid customers get free lifetime product support from our experts.

Need help? Call us anytime 1300 676 523

Trelino Evo High-Efficiency 12v Fan Kit for Composting Toilet Systems Reviews

Frequently Asked Questions

How does a composting dry toilet work?

The inner workings of a composting toilet essentially consist of three parts: separator, urine canister and solids container. The separator leads the urine into the canister, while the solids end up in a bucket with a compost bag.

When do I need a fan?

A fan counteracts condensation, accelerates the drying process of the solids and ensures that fragrances quickly dissolve into thin air. This makes it particularly suitable for long emptying cycles or if your Trelino® is used by several people. Due to its compact dimensions and short emptying cycles, the Trelino® S does not need a fan.

My composting toilet smells unpleasant.

The solids tank of your composting toilet will smell if the waste cannot dry well. Therefore, drying must be optimized. Try using either more litter or different litter. With this you can already achieve significant differences. However, to significantly improve the air circulation, the use of a fan would be recommended. This transports the moist warm air outside, so that everything can dry well. If you notice an odor coming from the urine canister, it is probably urine scale. The use of table vinegar, which you can leave to soak in for a longer period of time, will remove the deposits. Sometimes a stubborn deposit requires several applications. In the future, prevent urine scale by filling the urine canister with a little vinegar or lemon solution after every, or at the latest after every second, emptying of the urine. Let the solution soak in and shake vigorously once so that all deposits can dissolve.

What is your returns policy?

We know how crucial it is to find the perfect products for your access needs. To ensure you shop confidently, we proudly offer 100-day Free Returns on eligible products.

If you need to return your product, we'll organise and cover the return shipping costs across Australia without any restocking fees or hidden costs.

You'll have the option for a store credit, a full refund, or an exchange when the returned products meet the return criteria:

  •  The products cannot be used, damaged or modified and must be returned in the original packaging materials.
  •  Some products, such as almost new, made-to-order, installed, and custom-made products, aren't eligible for return.
  •  The 100-Day period begins from the day that your order is delivered or picked up.
  •  Only valid for the original purchaser.
  •  Only valid for online sales via ecooffgrid.com.au.
  •  Refunds, store credits or item swaps apply only to the cost of the products. Installation fees and original shipping costs will not be refunded.

Find our more by visiting our Refund Policy page.

How long will it take to receive my order?

We understand your eagerness to start your eco-friendly journey. That's why we endeavor to dispatch your order within 24 hours, business efficiency at its best. A confirmation email, complete with tracking details, will follow, allowing you to monitor your package's progress towards its new sustainable home.

What is the warranty on Trelino items?

Eco Off Grid only works with well-known, industry-leading manufacturers such as Trelino. All products come with a minimum 12-month warranty.

Minor scratches and blemishes may be visible upon receipt of your item. However, if the item is delivered damaged please contact us immediately.
